60 / 90 / 120 mm Thick Roof / Wall Panel Making Machines with High Automatization Degree

60 / 90 / 120 mm Thick Roof / Wall Panel Making Machines with High Automatization Degree

Automatic Roof and Wall Panel Making Machine,EPS Wall Panel Making Machine

Light weight EPS wall panel machine/sandwich wall panel machine

1. High strength
2. Simple, fast and firm installation
3. Easy cutting, drilling and sawing
4. Can be decorated directly
5. Competitive price

The equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise andthree-wastes during production.

Project-Feature:

1. The source of the production raw materials iswidely with no regional restriction. The product is made of sawdust, straw(rice hulls), many kinds of crop straw and inorganic material(such as talcum powder, infusorial earch and powder, infusorial earth and powder coal ash)after special technology. So this project have low production cost, small investment and fast effectiveness.

2. The equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes(waste water, waste gas and waste residue)during production.

3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.

4. The machine can produce thickness for 60mm, 90mm, 120mm, 150mm and 180mm, etc., all the length within 3m and width for 500-1000mm wallboard can be produced.

1. Metering System
After accurate weighing Fly ash, cement and sand, then being stirred with water into a slurry.
2. Forced mixing system
The slurry is transported by conveyor to the slurry compulsory mixer, and mixing with polystyrene particles evenly. Finally the slurry is poured into the mold.
3. Steam curing system.
The mould will be driven into curing room by the ferry cart for curing

The raw material proportion:

building material making machinery

Wall Panel Making Machine

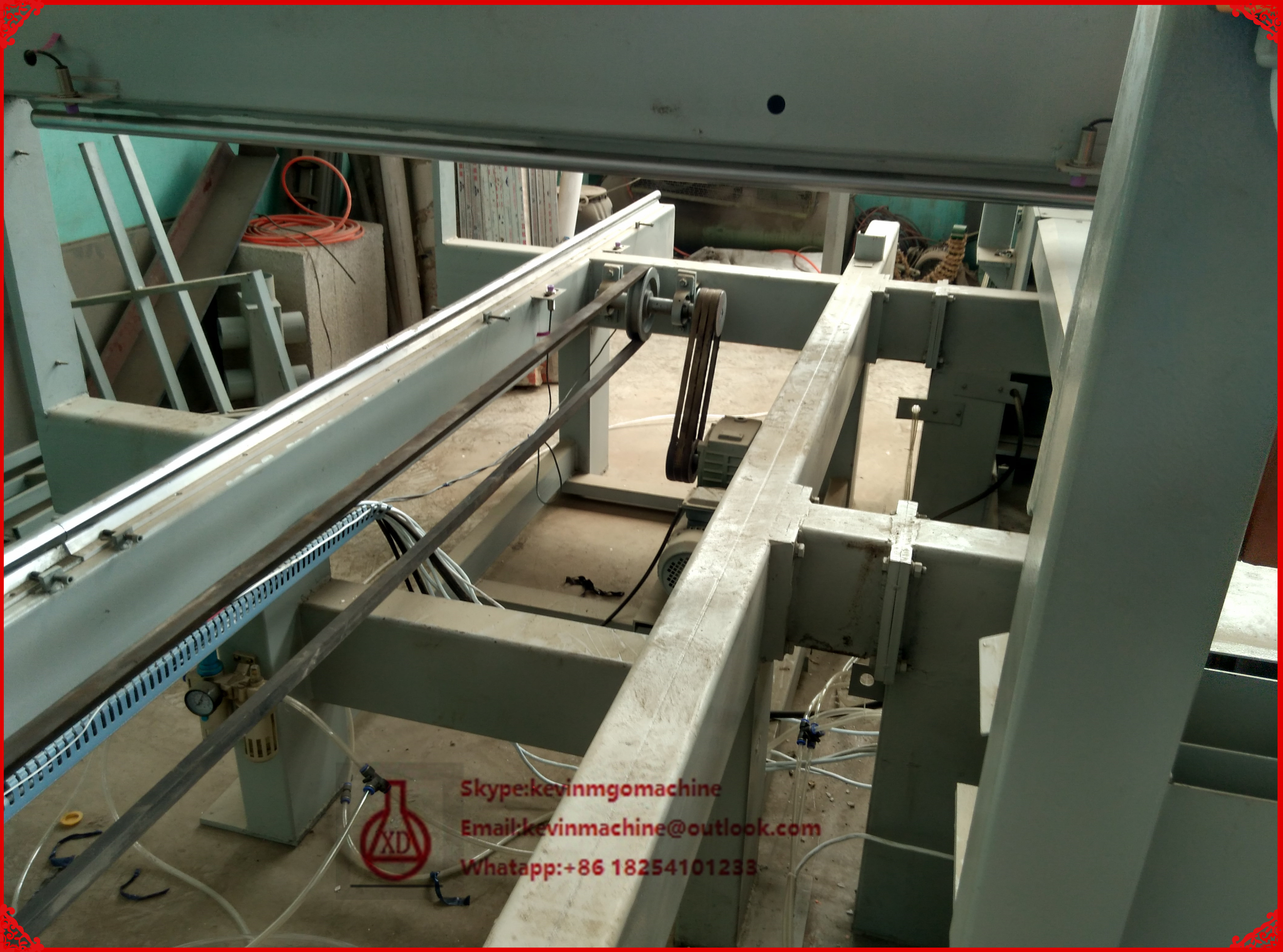

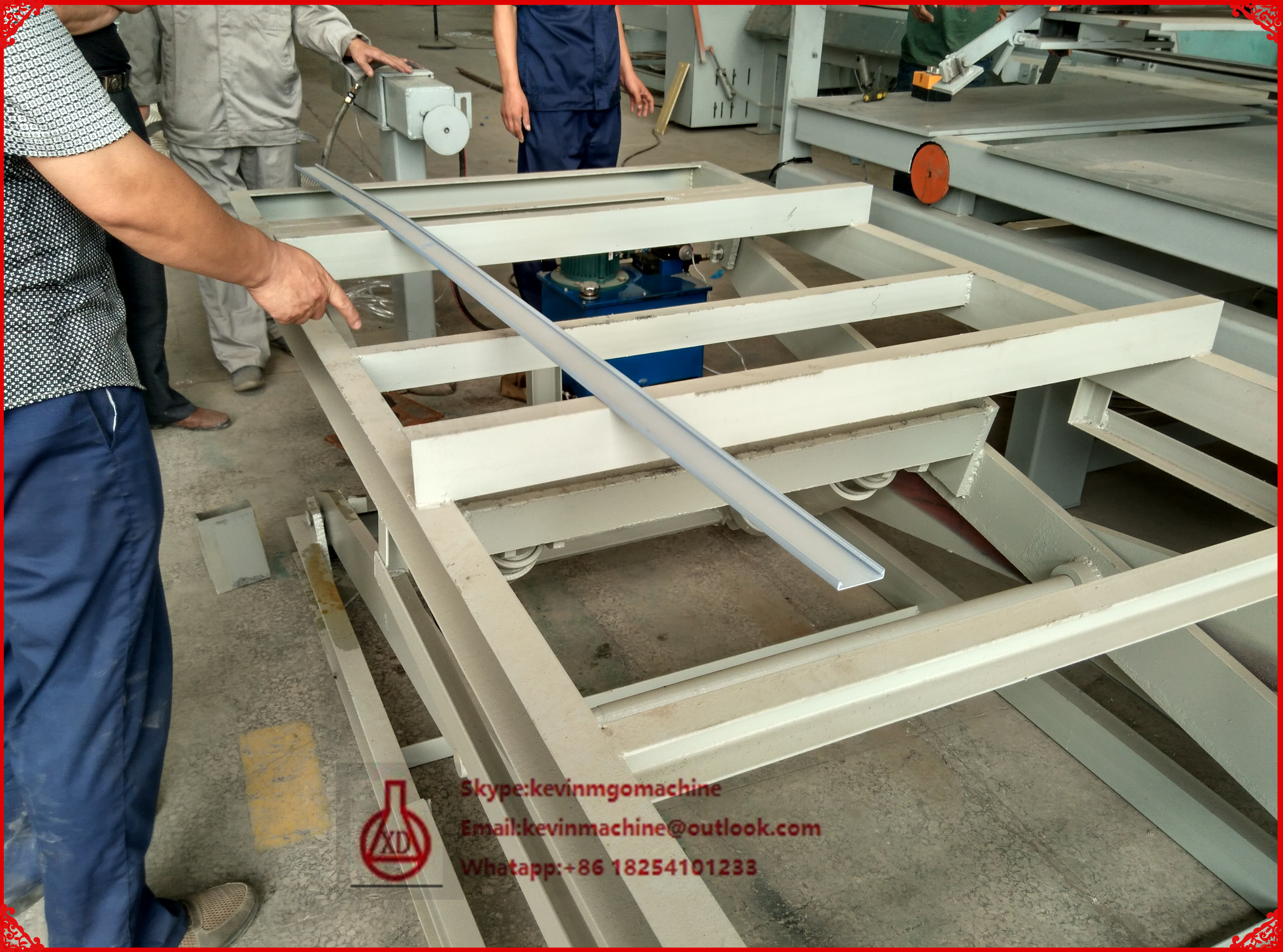

60 / 90 / 120 mm Thick Roof / Wall Panel Making Machines with High Automatization Degree Images
